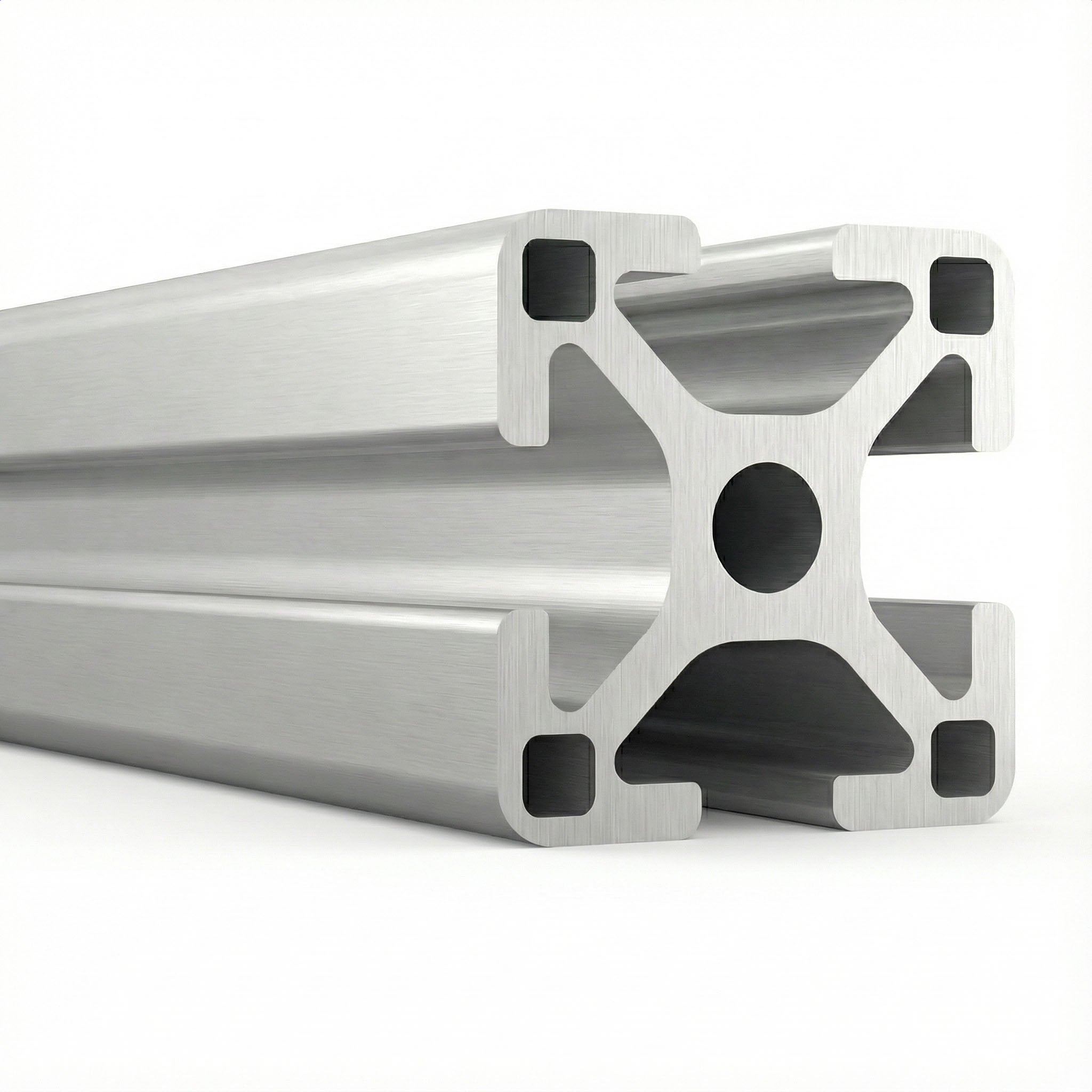

aluminium system profiles 20x20 Nut 6

Produktbild von einem Aluminium Systemprofil 20x20 Nut 6 in silber
Produktbild von einem Aluminium Systemprofil 20x20 Nut 6 in silber

aluminium system profiles 20x20 Nut 6

You have chosen a length of 1000mm, 1500mm or 2000mm.

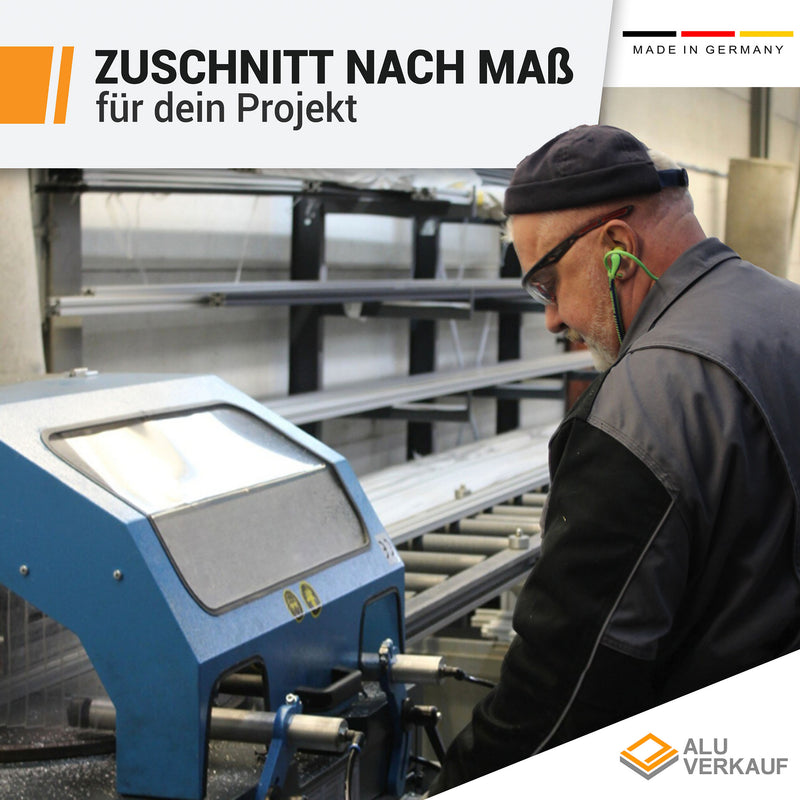

If we saw complete stock lengths, they become approx. 5mm shorter (due to the saw blade thickness). Would you be okay with that?

Please select a length for the price preview.
–+

Product information:

● Material: AlMgSi0.5

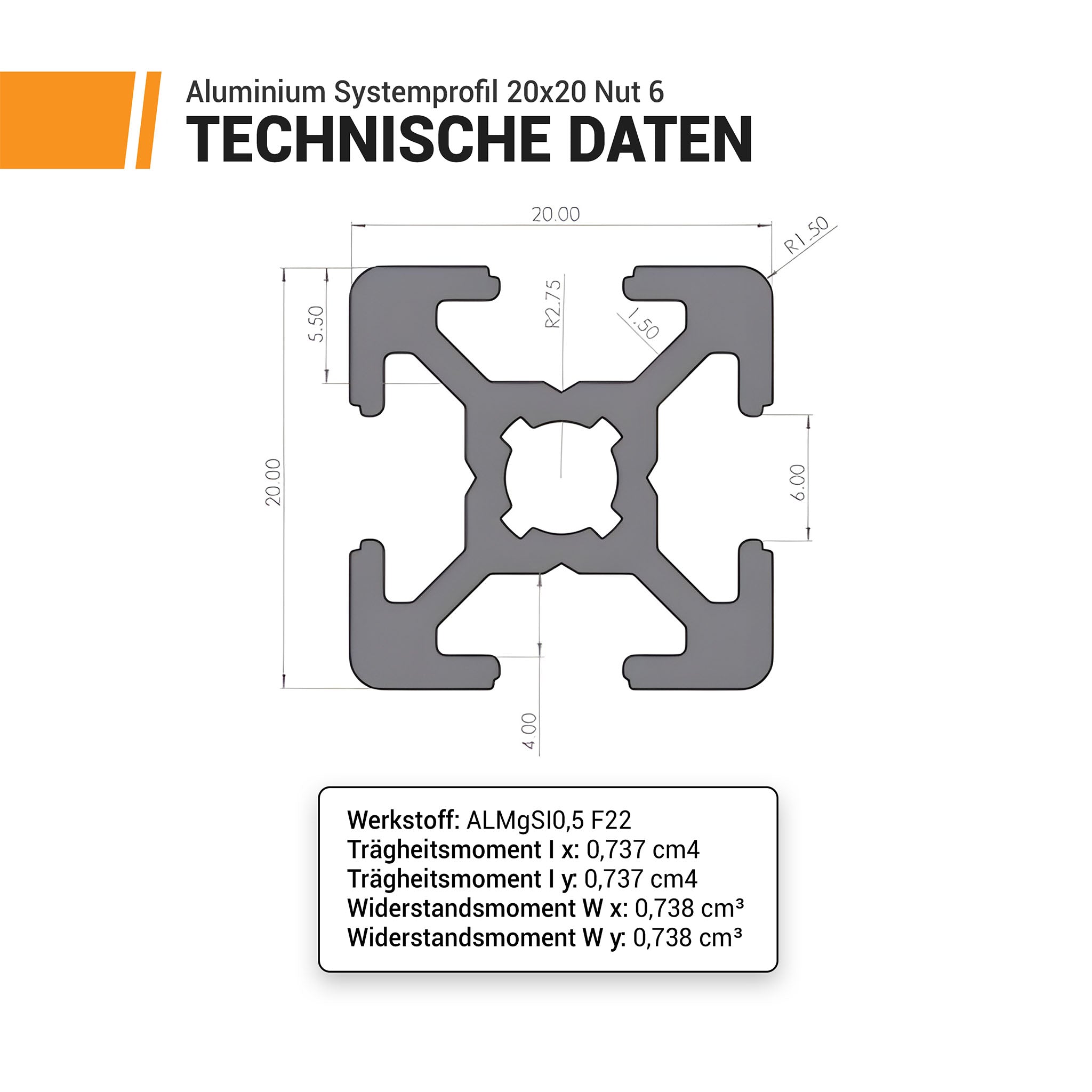

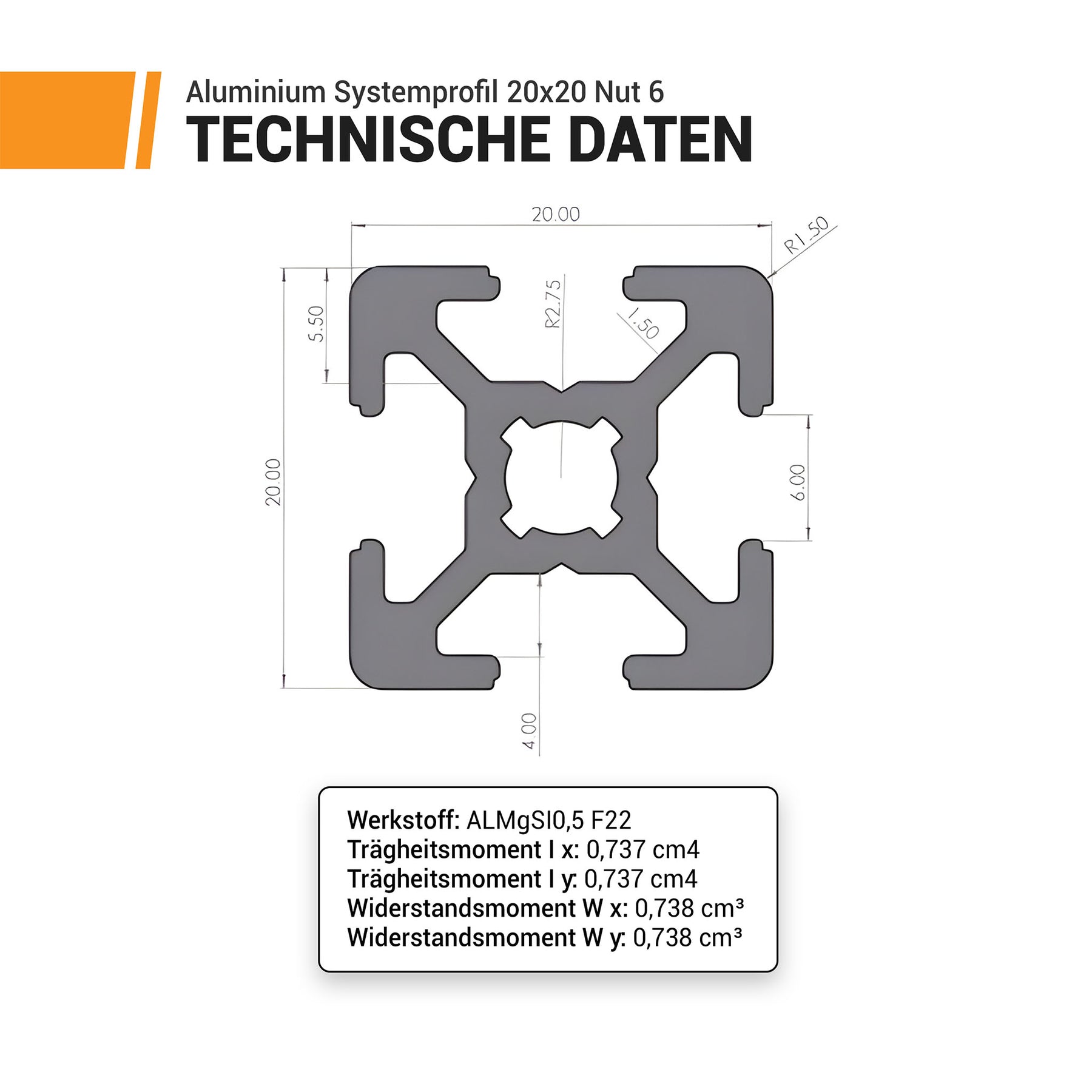

● Dimensions: 20x20 mm (dimensions 30x30, 40x40 and 80x40 mm are also available from us), groove width: 6 mm

● Length: individually selectable up to max. 6 m

● Surface: silver

● Moment of inertia I x | moment of inertia I y: 0.737 cm4

● Moment of resistance W x | moment of resistance W y: 0.738 cm³

●Supplies: Suitablesupplies such as screws, nuts, brackets and connecting pieces available

The prices quoted are gross prices incl. VAT, plus shipping costs. We will be happy to check whether profiles and dimensions not listed here are available for you. Please send us an inquiry using the contact form and we will get back to you as soon as possible.
