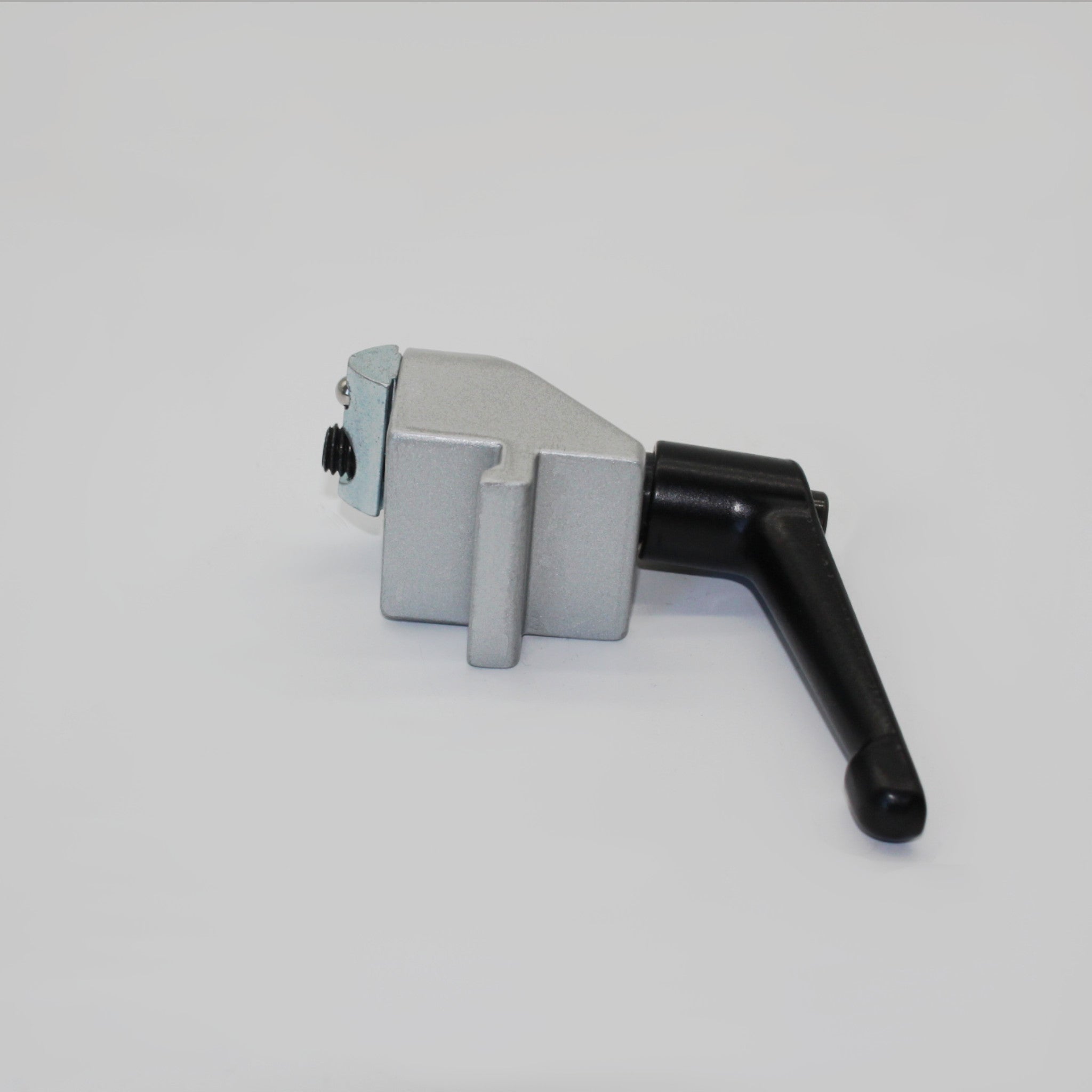

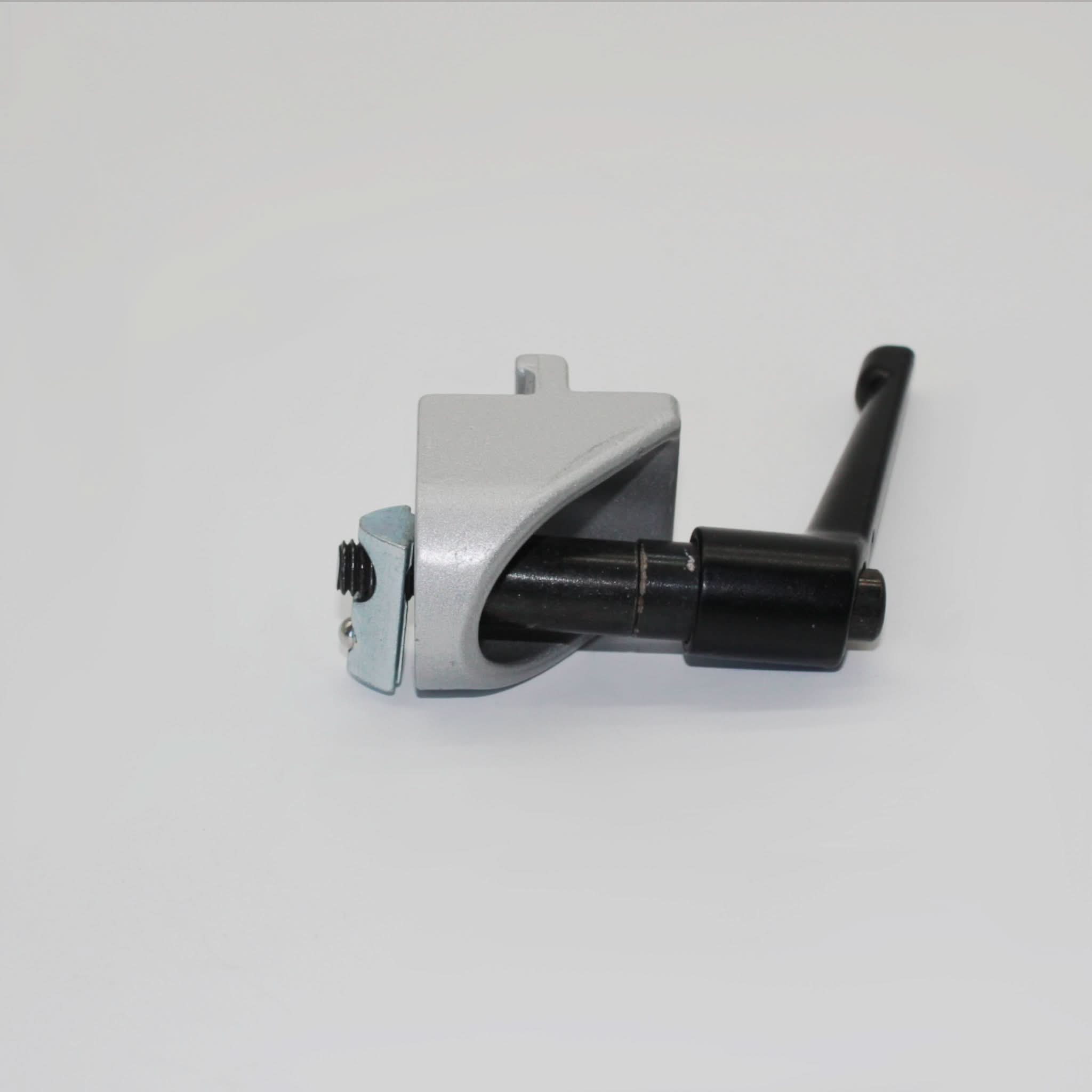

Clamping bracket 8 with clamping lever

Clamping brackets with clamping levers are used to connect two profiles of the same series that touch with their side faces and cross at any angle. This allows for flexible implementation of adjustable constructions, shelves, mounts, or frame solutions.

The hinge bracket forms a fixed pivot point for the intersecting profiles. Even with tightened screws, the rotational position around the bearing bush remains free.

In combination with a hinge bracket or a second clamping bracket, the clamping bracket enables an adjustable connection between two profiles. By loosening the screw or the clamping lever, the tension in both profile grooves is released. This allows the profiles to be freely rotated and moved along the grooves.

The combination of hinge bracket and clamping bracket is suitable, for example, for adjusting the angle of a shelf around a fixed pivot point. Two clamping brackets are often used when a shelf needs to be flexibly adjustable in height, lateral position, and angle.

Advantages at a glance:

• suitable for adjustable profile connections
• easy loosening and fixing with a clamping lever
• free angle adjustment possible
• profiles can be moved along the groove
• ideal for shelves, mounts, and flexible constructions
