Combination Hinge 30/30-8

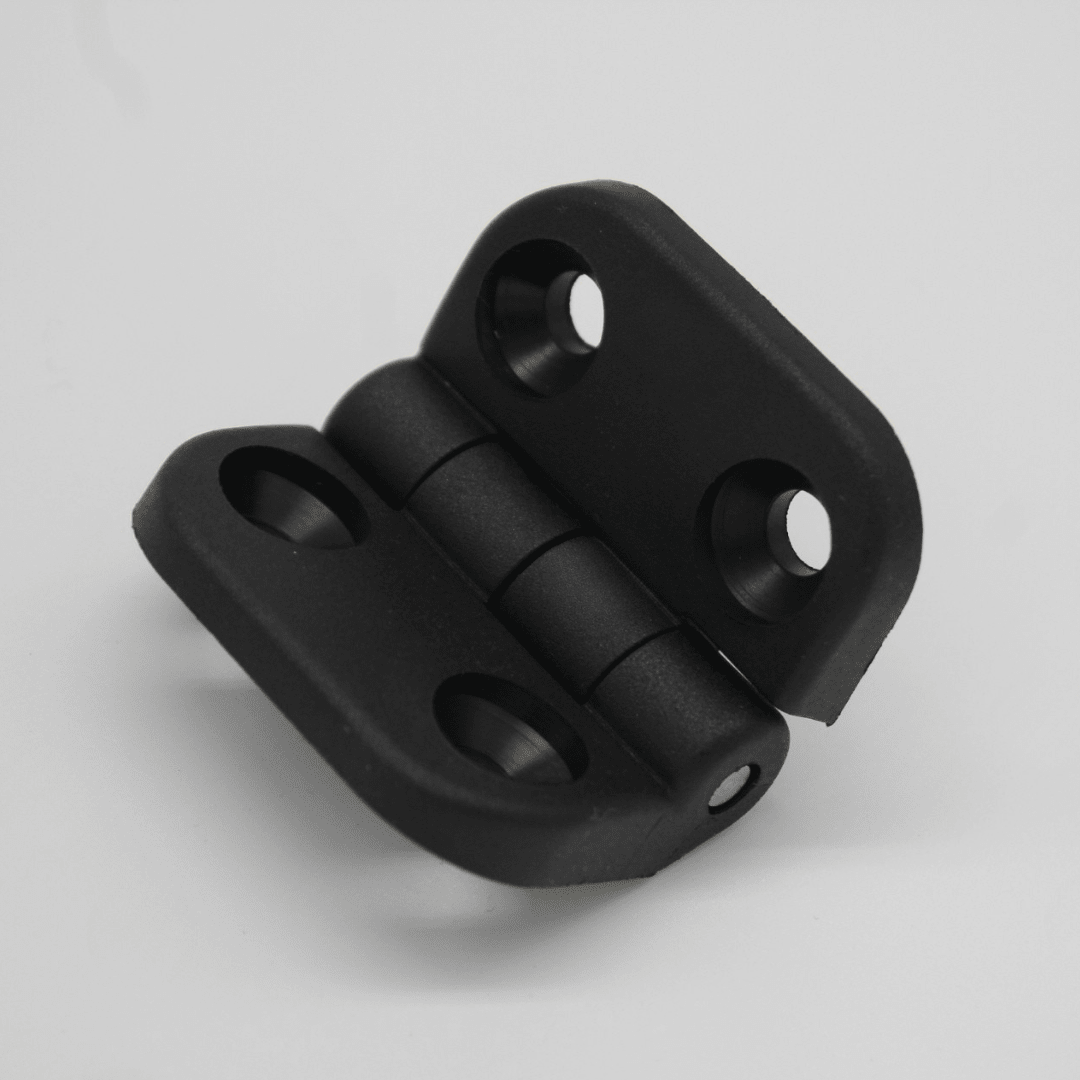

Produktfoto schwarzes Kombischarnier
Kombischarnier
Produktfoto schwarzes Kombischarnier
Kombischarnier
Trusted Shops buyer protection Trusted Shops buyer protection
  • No minimum quantity
  • Large selection
  • Individual cuts
  • Special sizes on request
  • 20 years of expertise
  • Local pickup possible
✓ Available
Specification
/

Non-detachable combination hinge SNNA30/30 – Technical description

The 30/30-8 combination hinge is a robust, non-detachable hinge for the stable connection of two elements, e.g., aluminum profiles, doors, or flaps. It is ideally suited for industrial applications, mechanical engineering, fixtures, and general metal construction.

Technical dimensions (in mm)

Designation Dimension
A 30
B 30
C 17.5
D 17.5
E 29.5
F 29.5

Load values

Force type Value
G – max. axial force 400 N
H – max. radial force 700 N

Further information

  • Version: non-detachable

  • Scope of delivery: 1 hinge, excluding screws

  • Assembly: Suitable for countersunk screws (drill patterns according to dimension drawing)

  • Material: Plastic
